DNS Service Record for Agent Autodiscovery

ARKSSPR 2.0

In order for agents to find the SSPR server dynamically, a service record must be created on local DNS servers. This record must be created manually and added to the _tcp folder in the local domain zone.

1. DNS management interface opens (dnsmgmt.msc),

2. Active Directory Zone is expanded,

3. Enter the _tcp folder,

4. Click "Other New Record" from the Action menu or right-click menu.

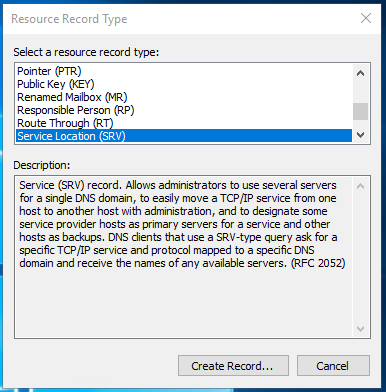

5. Select "Service Location (SRV)" from the window that opens and click "Create Record".

6. On the "New Service Record" screen, information is filled in as follows.

Field	Value	Description
Service	_arksspr
Protocol	_tcp
Port Number	443
Host	servername.domain.com	It is the server where the arksspr role is installed.

Service Location (SRV)

New Resource Record

When more than one arksspr server is installed, this process is repeated for each server.
